Inventory Data Examples
Adopters who are new to the standard sometimes struggle starting with a "white sheet of paper". Here, concrete examples often can help. Below, you can find some real life examples created in collaboration with the "Fondation des Parkings".
Dataset Contents
This minimal dataset contains details of two parking locations:
- P+R Étoile
- P+R Sécheron
Besides the core infrastructure specifics, tariff information is provided, too.
APDS-formatted Representation
Rate Table Data
an APDS-speaking data source would publish the tariff information as follows.
{
"id": "79ab1c25-289f-4a6c-b6b3-682ba1dea0e2",
"version": 1,
"rateTableName": [
{
"language": "ch",
"string": "Tarif P+R Étoile"
}
],
"availability": "public",
"additionalInformation": "https://www.geneve-parking.ch/fr/ou-stationner/pr-etoile",
"rateResponsibleParty": {
"id": "FONDATION_DES_PARKINGS",
"version": 1,
"className": "Operator"
}
}
Place Data
[
{
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
"type": "place",
"layer": 1,
"name": [
{
"language": "fr",
"string": "P+R Étoile"
}
],
"description": [
{
"language": "fr",
"string": "<p>Parfaitement implanté dans le nouveau quartier d’affaires du PAV (Praille-Acacias-Vernets), au-dessus d’une autoroute urbaine et d’un axe de pénétration majeur de la ville, le P+R Etoile offre une connexion directe au centre-ville par le biais des lignes de tram, de bus, ainsi que de la halte Lancy-Pont-Rouge du Léman Express.</p><p>Il met à disposition des places de recharge pour les voitures électriques, ainsi que des emplacements pour personnes à mobilité réduite./p><p>Il dispose de places réservées aux véhicules d'auto-partage Mobility, d’une vélostation extérieure protégée et sécurisée et de nombreuses places pour les deux-roues motorisés.</p>"
}
],
"timeZone": "Europe/Zurich",
"indicativePointLocation": {
"type": "Point",
"coordinates": [
6.128169788,
46.186960303
]
},
"placeStreetAddress": {
"countryCode": "CH",
"postCode": "1227",
"city": [
{
"language": "fr",
"string": "Carouge (GE)"
}
],
"addressLines": [
{
"order": 0,
"type": "street",
"text": [
{
"language": "fr",
"string": "Carrefour de l'Étoile 1"
}
]
}
]
},
"characteristics": {
"spacesTotal": 615,
"openToPublic": true
},
"rightSpecifications": [
{
"id": "88d5835f-a957-42fc-b228-01bd4301fdee",
"version": 1
}
]
"responsibilityRoleAssignments": [
{
"type": "operator",
"contactPoints": [
{
"id": "FONDATION_DES_PARKINGS",
"version": 1,
"organisationName": [
{
"language": "fr",
"string": "Fondation des parkings"
}
],
"contactType": "contactPoint"
}
]
}
]
},
{
"id": "99d81ced-8390-4d29-9fe6-bbbdab067a29",
"version": 1,
"type": "identifiedArea",
"accessType": "entry",
"layer": 2,
"name": [
"language": "fr",
"string": "Zone d'entrée"
],
"parent": {
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
},
"timeZone": "Europe/Zurich",
"indicativePointLocation": {
"type": "Point",
"coordinates": [
6.12733,
46.185688
]
},
"placeStreetAddress": {
"countryCode": "CH",
"postCode": "1212",
"city": [
{
"language": "fr",
"string": "Grand-Lancy (GE)"
}
],
"addressLines": [
{
"order": 0,
"type": "street",
"text": [
{
"language": "fr",
"string": "Route des jeunes 6"
}
]
}
]
}
},
{
"id": "93a0d81e-3157-4c34-a0f7-a639f67ee342",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Parkings standard pour voitures"
}
],
"parent": {
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 533
},
"hierarchyElementReference": {
"elementId": {
"id": "93a0d81e-3157-4c34-a0f7-a639f67ee342",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 533
}
],
"demandTable": [
{
"frequency": "PT3M",
"timestamp": "2026-01-26T17:02:00Z",
"demandType": [
{
"occupancyCalculation": "counted",
"count": 500,
"recordDateTime": "2026-01-26T17:01:23Z"
}
]
}
]
}
},
{
"id": "36dc833f-f41c-459e-a8f9-f9c7137efdfd",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Parkings avec possibilité de recharge"
}
],
"parent": {
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 18
},
"hierarchyElementReference": {
"elementId": {
"id": "36dc833f-f41c-459e-a8f9-f9c7137efdfd",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 18
}
],
"demandTable": [
{
"frequency": "PT3M",
"timestamp": "2026-01-26T17:02:00Z",
"demandType": [
{
"occupancyCalculation": "counted",
"count": 16,
"recordDateTime": "2026-01-26T17:01:23Z"
}
]
}
]
}
},
{
"id": "6d93bf8b-b27d-4c2e-9b4f-8587f1d3c46d",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Parkings pour motos"
}
],
"parent": {
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 64
},
"hierarchyElementReference": {
"elementId": {
"id": "6d93bf8b-b27d-4c2e-9b4f-8587f1d3c46d",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 64
}
],
"demandTable": [
{
"frequency": "PT3M",
"timestamp": "2026-01-26T17:02:00Z",
"demandType": [
{
"occupancyCalculation": "counted",
"count": 50,
"recordDateTime": "2026-01-26T17:01:23Z"
}
]
}
]
}
}
]

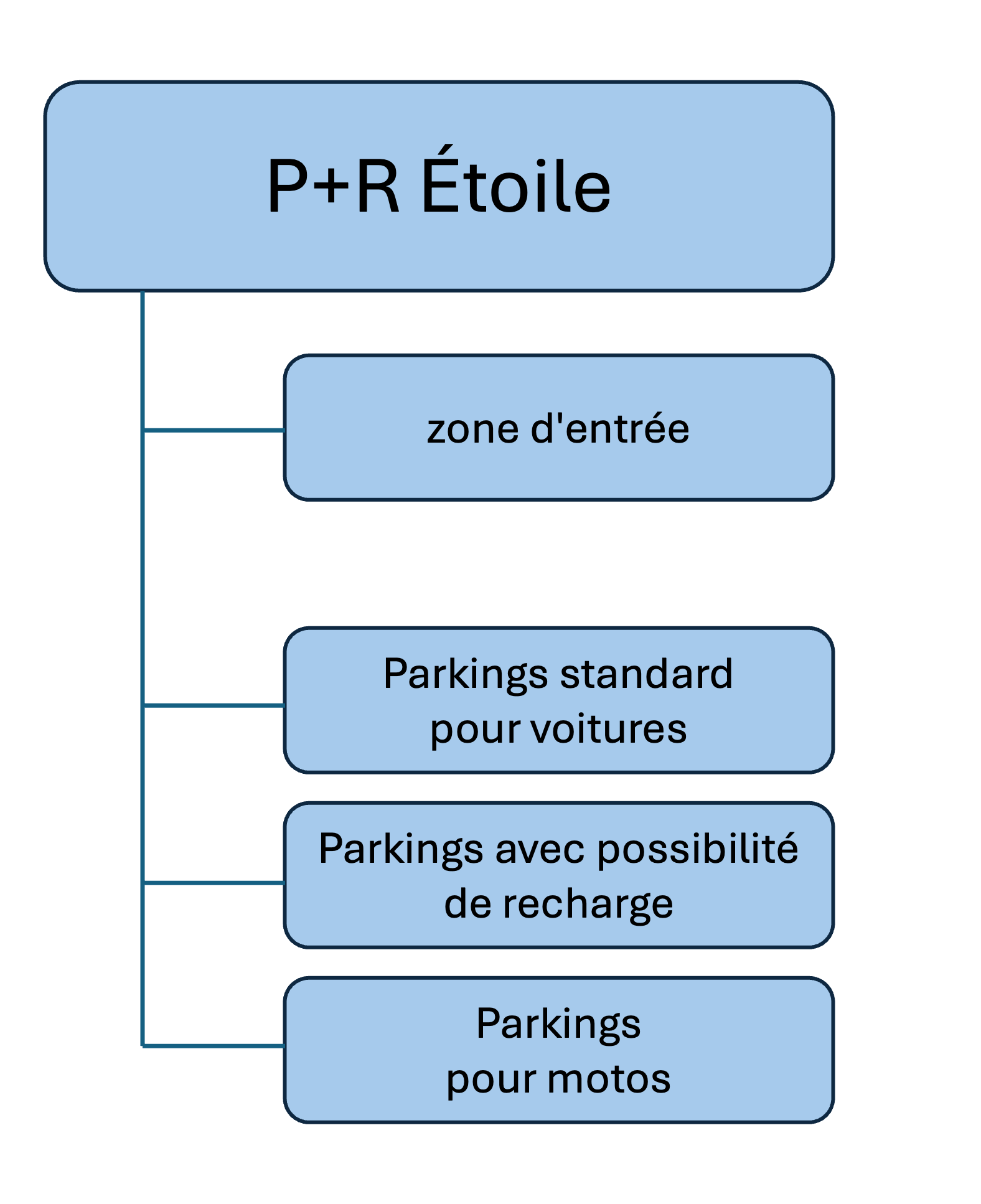

The above payload creates a part of what APDS calls a Place Hieararchy. In the example, we now have a car park with three _Identified Area_s as children plus a fourth Identified Area describing the main entry area:
Right Specification Data
In APDS, Right Specifications define eligibility criteria for locations and tariffs, i.e. they "tie" the Rate Table to the Place (including potential conditions).
That way, it would e.g. be possible to offer a (more expensive) standard tariff and a reduced tariff for electric vehicles.
[
{
"id": "88d5835f-a957-42fc-b228-01bd4301fdee",
"version": 1,
"type": "oneTimeUseParking",
"hierarchyElements": [
{
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1
}
],
"rateEligibility": [
{
"id": "88d5835f-a957-42fc-b228-01bd4301fdee-0",
"version": 1,
"rateTable": {
"id": "79ab1c25-289f-4a6c-b6b3-682ba1dea0e2",
"version": 1
}
}
],
"issuer": {
"id": "FONDATION_DES_PARKINGS",
"version": 1,
"className": "Operator"
},
"validity": {
"validityStatus": "definedByValidityTimeSpec",
"validityTimeSpecification": {
"overallStartTime": "2026-01-01T00:00:01Z",
"validPeriods": [
{
"periodName": [
{
"language": "fr",
"string": "Du lundi au vendredi de 7h à 19h"
}
],
"recurringDayWeekMonthPeriod": [
{
"applicableDay": [ "monday", "tuesday", "wednesday", "thursday", "friday"]
}
],
"recurringTimePeriodOfDay": [
{
"startTimeOfPeriod": "07:00",
"endTimeOfPeriod": "19:00"
}
]
}
]
}
}
}
]
2nd Dataset
The second parking location (P+R Sécheron) is similarly structured.
Rate Table
Here is the APDS representation of the P+R Sécheron tariff:
{
"id": "006a3d45-eee1-44eb-9e53-ce4163359d9f",
"version": 1,
"rateTableName": [
{
"language": "ch",
"string": "Tarif P+R Sécheron"
}
],
"availability": "public",
"rateResponsibleParty": {
"id": "FONDATION_DES_PARKINGS",
"version": 1,
"className": "Operator"
},
"rateLineCollections": [
{
"id": "006a3d45-eee1-44eb-9e53-ce4163359d9f-0",
"version": 1,
"collectionSequence": 0,
"applicableCurrency": "CHF",
"minTime": "PT1H",
"rateLines": [
{
"id": "006a3d45-eee1-44eb-9e53-ce4163359d9f-0-0",
"version": 1,
"sequence": 0,
"description": [
{
"language": "fr",
"string": "par heure (10 premières heures)"
}
],
"rateLineType": "flatRateTier",
"value": 2,
"durationStart": "00:00",
"durationEnd": "10:00",
"incrementPeriod": "PT1H",
"usageCondition": "unlimited",
"maxValue": 20
},
{
"id": "79ab1c25-289f-4a6c-b6b3-682ba1dea0e2-0-1",
"version": 1,
"sequence": 1,
"description": [
{
"language": "fr",
"string": "11 heures à une journée"
}
],
"rateLineType": "flatRate",
"value": 1,
"incrementPeriod": "PT5H",
"usageCondition": "once" }
]
}
],
"validity": {
"validityStatus": "definedByValidityTimeSpec",
"validityTimeSpecification": {
"overallStartTime": "2026-01-01T00:00:01Z",
"validPeriods": [
{
"periodName": [
{
"language": "fr",
"string": "Du lundi au vendredi de 7h à 19h"
}
],
"recurringDayWeekMonthPeriod": [
{
"applicableDay": [ "monday", "tuesday", "wednesday", "thursday", "friday"]
}
],
"recurringTimePeriodOfDay": [
{
"startTimeOfPeriod": "07:00",
"endTimeOfPeriod": "19:00"
}
]
}
]
}
}
}
Place Data
[
{
"id": "34a71857-1fd0-4eac-82e4-4ff8c8700ffa",
"version": 1
"type": "place",
"layer": 1,
"name": [
{
"language": "fr",
"string": "P+R Sécheron"
}
],
"timeZone": "Europe/Zurich",
"indicativePointLocation": {
"type": "Point",
"coordinates": [
6.145382384,
46.220735699
]
},
"placeStreetAddress": {
"countryCode": "CH",
"postCode": "1202",
"city": [
{
"language": "fr",
"string": "Genève (GE)"
}
],
"addressLines": [
{
"order": 0,
"type": "street",
"text": [
{
"language": "fr",
"string": "Rue Kazem-RADJAVI 8"
}
]
}
]
},
"characteristics": {
"spacesTotal": 523,
"openToPublic": true
},
"rightSpecifications": [
{
"id": "32d7f4b1-fcf2-467f-b536-b77aef90372e",
"version": 1
}
]
"responsibilityRoleAssignments": [
{
"type": "operator",
"contactPoints": [
{
"id": "FONDATION_DES_PARKINGS",
"version": 1,
"organisationName": [
{
"language": "fr",
"string": "Fondation des parkings"
}
],
"contactType": "contactPoint"
}
]
}
],
"operatingRestrictions": [
{
"operatingRestriction": "noParking",
"operatingRestrictionContext": [{ "language":"en", "string":"Fermé de 19h à 7h"}],
"times": {
"validPeriods": [
{
"recurringTimePeriodOfDay": [
{
"startTimeOfPeriod": "19:00",
"endTimeOfPeriod": "07:00"
}
],
"recurringDayWeekMonthPeriod": [
{
"applicableDay": [
"monday",
"tuesday",
"wednesday",
"thursday",
"friday"
]
}
]
}
]
}
}
]
},
{
"id": "a07c59ba-31fb-4f08-a79d-8629bbda8174",
"version": 1,
"type": "identifiedArea",
"accessType": "entry",
"layer": 2,
"name": [
"language": "fr",
"string": "Zone d'entrée"
],
"parent": {
"id": "34a71857-1fd0-4eac-82e4-4ff8c8700ffa",
"version": 1,
},
"timeZone": "Europe/Zurich",
"indicativePointLocation": {
"type": "Point",
"coordinates": [
6.1455893577004,
46.221146070017
]
},
"placeStreetAddress": {
"countryCode": "CH",
"postCode": "1202",
"city": [
{
"language": "fr",
"string": "Genève (GE)"
}
],
"addressLines": [
{
"order": 0,
"type": "street",
"text": [
{
"language": "fr",
"string": "Rue Kazem-RADJAVI 8"
}
]
}
]
}
},
{
"id": "9035fdeb-8574-4ebd-b42a-64007a33d67d",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Parkings standard pour voitures"
}
],
"parent": {
"id": "34a71857-1fd0-4eac-82e4-4ff8c8700ffa",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 406
},
"hierarchyElementReference": {
"elementId": {
"id": "9035fdeb-8574-4ebd-b42a-64007a33d67d",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 406
}
]
}
},
{
"id": "8d7da1ec-c9ab-4284-9ef3-86e88a3be9dc",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Parkings avec possibilité de recharge"
}
],
"parent": {
"id": "34a71857-1fd0-4eac-82e4-4ff8c8700ffa",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 18
},
"hierarchyElementReference": {
"elementId": {
"id": "8d7da1ec-c9ab-4284-9ef3-86e88a3be9dc",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 18
}
]
}
},
{
"id": "9e9efb82-2e6e-4171-8aa2-786802f3c894",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Parkings pour motos"
}
],
"parent": {
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 44
},
"hierarchyElementReference": {
"elementId": {
"id": "9e9efb82-2e6e-4171-8aa2-786802f3c894",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 44
}
]
}
},
{
"id": "5dad87f3-5707-4c63-94f0-8dbe5ce9fb57",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Parkings pour vélos"
}
],
"parent": {
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 55
},
"hierarchyElementReference": {
"elementId": {
"id": "5dad87f3-5707-4c63-94f0-8dbe5ce9fb57",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 55
}
]
}
},
{
"id": "bfaf2341-145c-47fd-acf4-8b8c985037e8",
"version": 1,
"type": "identifiedArea",
"layer": 2,
"name": [
{
"language": "en",
"string": "Personnes à mobilité réduite"
}
],
"parent": {
"id": "f4fdae01-929f-47d5-aeaa-4e5d138a83c0",
"version": 1,
},
"timeZone": "Europe/Zurich",
"characteristics": {
"spacesTotal": 5
},
"hierarchyElementReference": {
"elementId": {
"id": "bfaf2341-145c-47fd-acf4-8b8c985037e8",
"version": 1,
},
"supply": [
{
"supplyViewType": "spaceView",
"supplyQuantity": 5
}
]
}
}
]
Please take note of the specified operating restrictions indicating when the parking is closed and doesn't allow vehicles to be parked there.
Right Specification Data
Like you already saw in the first example, one (or more) _Right Specification_s define who is eligible for which tariff and when. Here is the corresponding spec for P+R Sécheron:
[
{
"id": "32d7f4b1-fcf2-467f-b536-b77aef90372e",
"version": 1,
"type": "oneTimeUseParking",
"hierarchyElements": [
{
"id": "34a71857-1fd0-4eac-82e4-4ff8c8700ffa",
"version": 1
}
],
"rateEligibility": [
{
"id": "32d7f4b1-fcf2-467f-b536-b77aef90372e-0",
"version": 1,
"rateTable": {
"id": "006a3d45-eee1-44eb-9e53-ce4163359d9f",
"version": 1
}
}
],
"issuer": {
"id": "FONDATION_DES_PARKINGS",
"version": 1,
"className": "Operator"
},
"validity": {
"validityStatus": "definedByValidityTimeSpec",
"validityTimeSpecification": {
"overallStartTime": "2026-01-01T00:00:01Z",
"validPeriods": [
{
"periodName": [
{
"language": "fr",
"string": "Du lundi au vendredi de 7h à 19h"
}
],
"recurringDayWeekMonthPeriod": [
{
"applicableDay": [ "monday", "tuesday", "wednesday", "thursday", "friday"]
}
],
"recurringTimePeriodOfDay": [
{
"startTimeOfPeriod": "07:00",
"endTimeOfPeriod": "19:00"
}
]
}
]
}
}
}
]
